Replay NeckCare System Assessments

The replay feature allows users to review a playback of the patient’s movements during an assessment. It has two playback views: the main assessment graph and a 3D Movement Replay. The 3D Movement Replay uses a head avatar that moves according to the patient’s 3D motion as recorded during the assessment. This functionality is available for all NeckCare System assessments.

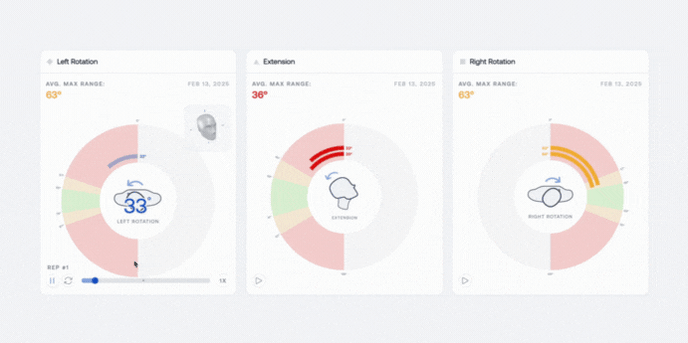

The ROM Replay

The ROM Replay function enables detailed analysis of primary plane movements. Clinicians can more effectively demonstrate the quality of a patient’s movement by showing accessory movements through this feature.

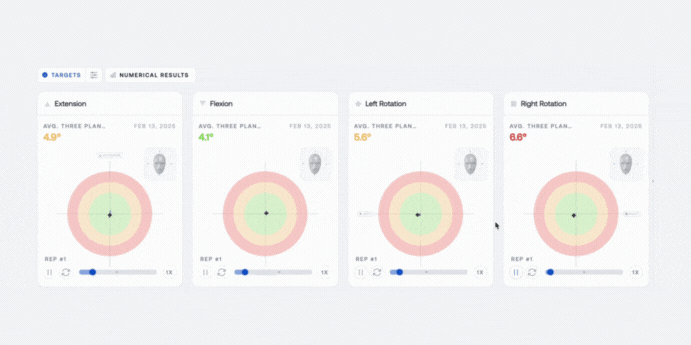

The JPE Replay

The JPE Replay function allows clinicians to review the path-to-neutral tracing in detail. This helps identify movement patterns such as jerky motions, significant deviations from a straight path or the patient’s struggle to find the neutral position.

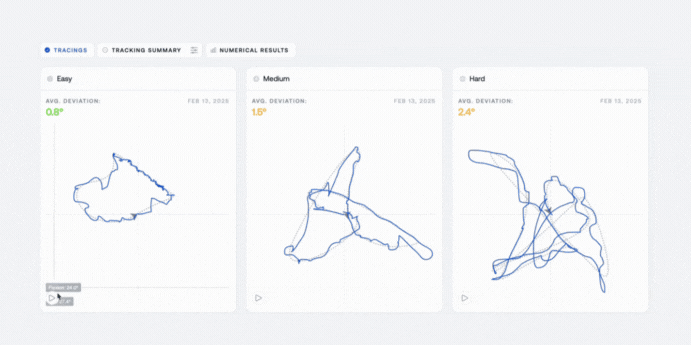

The Butterfly Test Replay

The Butterfly Test allows clinicians to observe smoothness of the patient's movement to identify any jerky movements and to spot the segments where the patient deviates from the path or the target.

3D Movement Replay feature

The 3D Movement Replay provides dynamic, visual feedback by reproducing patient head movements across all three planes during the Range of Motion Test (ROM), Joint Position Error (JPE) Test, and Butterfly Test. This innovative tool aids clinician analysis and patient understanding by presenting complex motion data in an intuitive, easy-to-digest manner. Clinicians can use this tool to effectively communicate the results of each test to the patient.

For any troubleshooting issues see this article or contact support@neckcare.com
